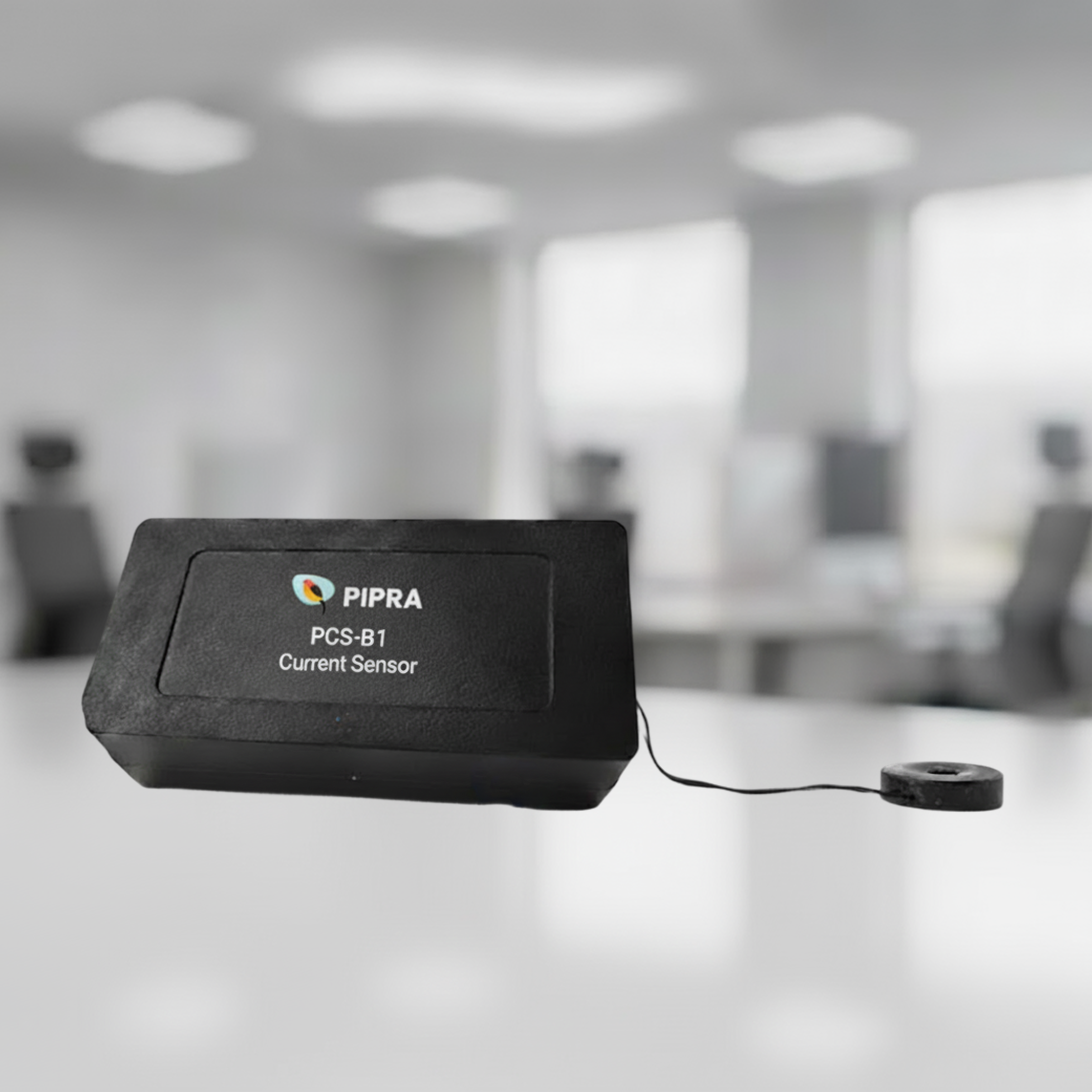

PCS-B1

Compact Current Sensor

This current sensor is specifically designed to provide current monitoring without direct circuit integration, offering crucial data for system optimization and process control. Its compact size and long-lasting battery make it perfect for tracking power usage and appliance runtime, such as monitoring UV light exposure duration in critical biological or agricultural environments.

Technical Specification

Operating Temperature
-40°C to +85°C
Measuring Range
0-10 amps
Accuracy
± 1% rdg
Uploads
Current (in amps) & Time stamp
Communication
BLE, Integrated with Raspberry Communication
Dimension
85 mm x 51.5 mm x 6 mm
Weight
54 Gm
DOWNLOAD DATASHEET

Key Features

  • Plug & Play, with simple wire pass though
  • Polling Data Interval 30 minutes (default), Configurable
  • Views, Analytics and Alerts management
  • 24x7 monitoring and analysis
  • High Availability
  • High Accuracy
  • Calibration Certification

Technical Specification

Operating Temperature
-40°C to +85°C
Measuring Range
0-10 amps
Accuracy
± 1% rdg
Uploads
Current (in amps) & Time stamp
Communication
BLE, Integrated with Raspberry Communication
Dimension
85 mm x 51.5 mm x 6 mm
Weight
54 Gm

Key Features

  • Plug & Play, with simple wire pass though
  • Polling Data Interval 30 minutes (default), Configurable
  • Views, Analytics and Alerts management
  • 24x7 monitoring and analysis
  • High Availability
  • High Accuracy
  • Calibration Certification
